PSH Parking Replancement Automated Car Smart Parking Lift System

FOB Reference Price:Get Latest Price
US $2,000-4,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
30000 Unit/Units per Year
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Type:
parking system
Height (mm):
Vehicle Length 5200
Width (mm):
Vehicle Width 1900
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tada
Model Number:
PSH
Warranty:
1 Years
Packaging & Delivery
Packaging Details
Standard export packing for rotary automated car parking system
Delivery Time
Shipped in 45 days after payment
Product Overview

PSH Rotary Parking Replancement Automated Car Smart Parking Lift System

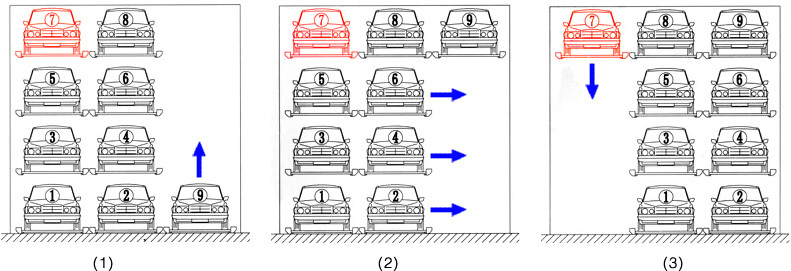

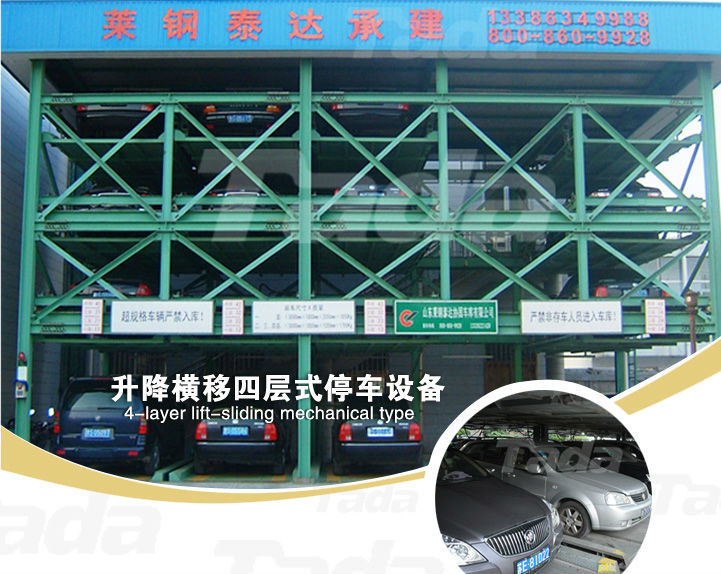

Operating Principle

The entrance of this type is on the ground floor, the car boards on the top layer can only be lifted, the car boards on the bottom layer can only be slid, and car boards on the middle layers can be both lifted and sild. The middle layers had empty spaces, so that the car boards could be slid, and let the vehicle above down to the ground floor to be picked. The vehicles on the bottom layer can be driven out directly.

Video Show

Company's video: https://www.youtube.com/watch?v=TqeVdAbFLdU

Picture Show

Technical Parameters

Name

Instruction

Layer

Upper layer

Middle layer

Ground layer

Vehicle Size

Length

5000(mm)

5000(mm)

5200(mm)

Width

1850(mm)

1850(mm)

1900(mm)

Height

1550(mm)

1550(mm)

2050(mm)

Vehicle Weight

1700(kg)

1700(kg)

2000(kg)

Lifting

Power

2.2(kw)

Speed

5.5-6(m/min)

Sliding

Power

0.2(kw)

Speed

8(m/min)

Driven Mode

Electric machine+Cycle chain+ Steel wire rope

Operation Mode

Button, Automatic, Manual

Power Supply

AC380V/220V50Hz; 3¢380V/220V50Hz

Application Range

PSH Rotary Parking Replancement Automated Car Smart Parking Lift System
(1)The equipment utilizes steel wire to lift, it is designed into 4 layers.
(2)It has better utilization ratio of the space than the other common parking systems and more suitable for outdoors.
(3) Big span design and PLC controlling are good for environmental protection and energy-saving.

Equipment Structure

PSH Rotary Parking Replancement Automated Car Smart Parking Lift System
Each group of controlling of this parking system is designed into 3-car to 6-car, just depending on specific site conditions.

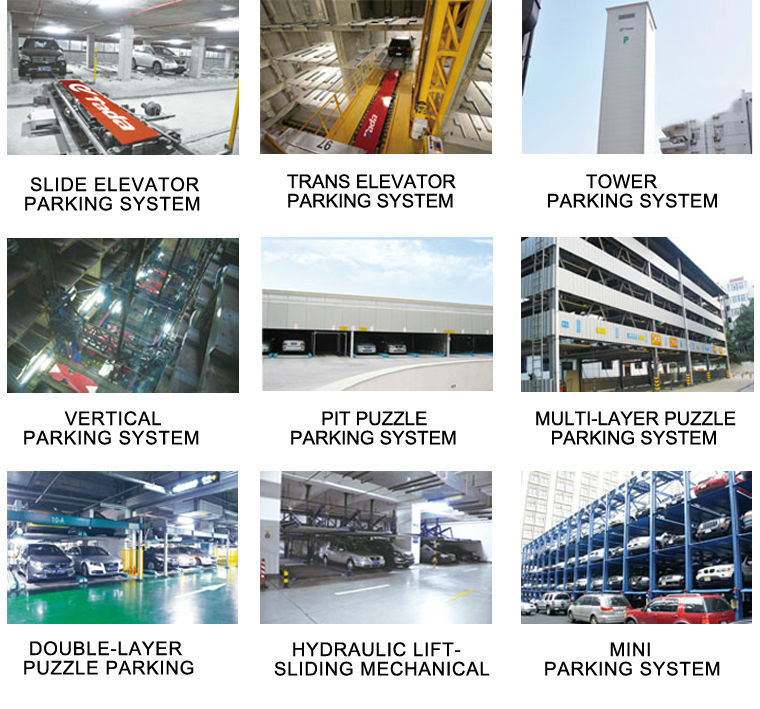

Type & Classification

PSH Rotary Parking Replancement Automated Car Smart Parking Lift System
4-point safety device on the ground and underground; independent car-resistant device, over-length, over-range and over-time detection, crossing section protection, with extra wire detection device.

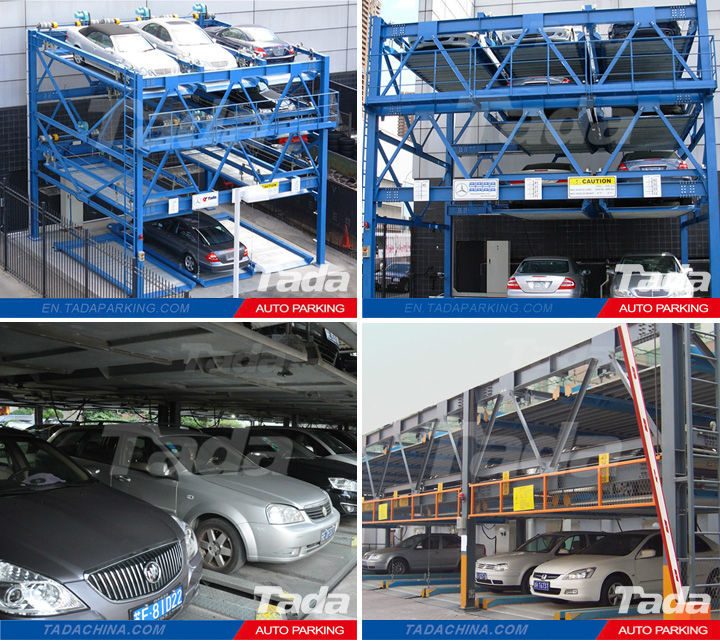

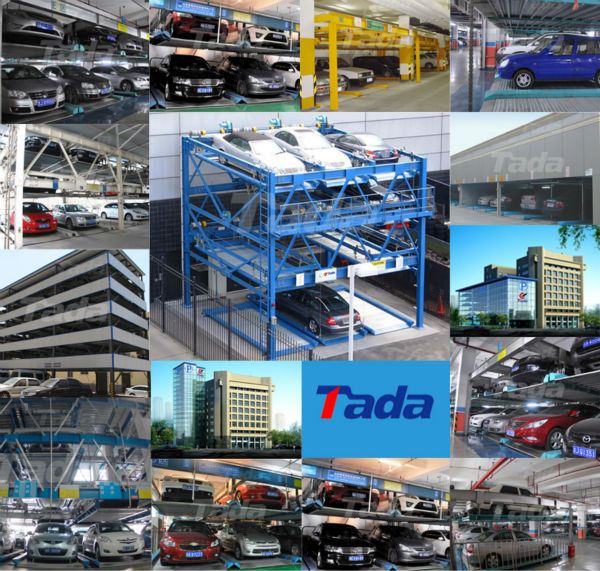

Project Case

Exporting countries
USA, Canada, Australia, Russia, Spain,Germany, UK, New Zealand, Brazil, Mexico, Columbia, Thailand and many other countries.
Quality Guarantee

Warranty

Five years for main structure, one year for parts.
During this period, if there is damaged parts because of our quality, after you send us real pictures, we will send you new products for free.

Supplier Assessment

Tada has been assessed by TÜV Rheinland, giving buyers in-depth details and authoritative information about suppliers for free, to help buyers source smarter and safer. Below is the certificate showing.

Trade Assurance

The registered capital of Tada almost 30 million USD, is the largest parking system company of China. Tada has assigned Alibaba a Trade Assurance Limit for covering buyers,so your rights can be well protected.

Technical Patents

The Europe R & D Center
The Europe R&D Center of Tada located beside of beautiful Lake Lugano in Switzerland, and many top parking experts of the world had joined in IT. The technology strength is abundant and had invented the third generation silomat intelligence carrying system and monitor system. Which had more than 30 intellectual properties. This system had widely used in Athens' Olympics Games (more than 1000 carports).

Main Material

Shan Steel Group is one of our shareholders, ranking the 88th on the list of the China's top 500 enterprises, and the 33rd on the list of China’s top 500 manufacturing enterprises. Material of Tada used Hot rolled H-shaped steel was made by Shan Steel Group.
Hot rolled H-shaped steel was awarded the "China famous brand" title, this is also the first steel of famous brand in China metallurgical industry.

Shan Steel and Shagang Group are both Tada’s shareholders. Shan Steel Gr- oup are H-beam steel high-quality goods production bases, and the quality of raw material can be guaranteed.

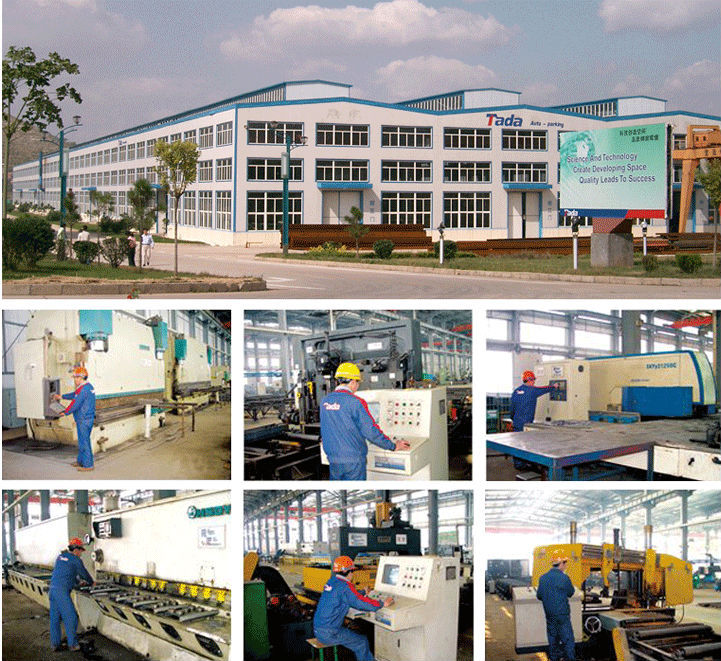

Production Equipment
