PSH three floors puzzle smart parking garage lift

FOB Reference Price:Get Latest Price
US $2,500-3,500 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Puzzle Parking System
Height (mm):
Vehicle Length 5000
Width (mm):
Vehicle Width 1850
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tada
Model Number:
PSH
Warranty:
1 Years
Driving mode:
Motor
Color:
Customized
Capacity:
2000kg
Lifting speed:
4 m/min
Certification:
TUV, ISO
Power supply:
Upon request
Mode of operate:
Card, Button
Parking vehicles:
SUV or sedan
Surface treatment:
Paint(Optional to Galvanized)
Product Name:
PSH three floors puzzle smart parking garage lift
Packaging & Delivery
Packaging Details
Standard export packing for puzzle parking system
Port
Qingdao port
Lead Time :
30-120 days after receiving the deposit
Product Description
PSH three floors puzzle smart parking garage lift
Type
Puzzle parking system
Brand Name
Tada
Available car size
5000*1850*1550(mm)
Load capacity
2000kg
Lifting power
2.2kw
Lifting speed
4 m/min
Sliding power
0.2kw
Sliding speed
8 m/min
Color
Customized
Certification
TUV, ISO
Driven mode
Motor
Warranty
1 year

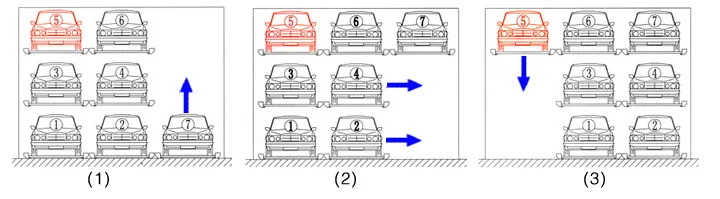

Operating Principle

The entrance of this type is on the ground floor, the car boards on the top layer can only be lifted, the car boards on the bottom layer can only be slid, and car boards on the middle layers can be both lifted and sild. The middle layers had empty spaces, so that the car boards could be slid, and let the vehicle above down to the ground floor to be picked. The vehicles on the bottom layer can be driven out directly.

Application Range

(1)The equipment utilizes steel wire to lift, it is designed into 3 layers.
(2)It has better utilization ratio of the space than the other common parking systems and more suitable for outdoors.
(3) Big span design and PLC controlling are good for environmental protection and energy-saving.

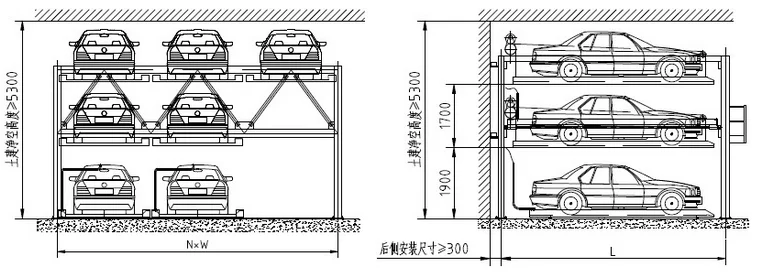

Equipment Structure

Each group of controlling of this parking system is designed into 3-car to 6-car, just depending on specific site conditions.

Type & Classification

4-point safety device on the ground and underground; independent car-resistant device, over-length, over-range and over-time detection, crossing section protection, with extra wire detection device.

Detailed Images

Electric control cabinet

Internal design of scientific compact, the use of domestic first-class brand components, More secure, more reliable.

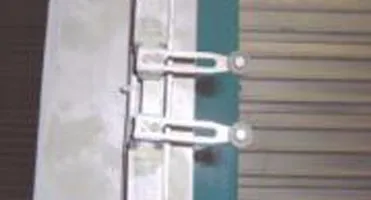

Safety anti falling device

Parking equipment design safety fall arrest safety hook, when the equipment in use, the safety hook will automatically move, and lock the car board to prevent the decline.

Emergency stop switch

A large red seizure switch is provided on the control panel of the unit to ensure that any mechanical action can be stopped immediately upon the occurrence of an emergency and in the event of an emergency, and that the equipment can not be operated until the condition is removed.

Safety anti falling device

Parking equipment design safety fall arrest safety hook, when the equipment in use, or the upper platform plate in place, the safety hook will automatically move, and lock the car board to prevent the decline.

Packing & Delivery
Our most professional packaging
Loading completed truck
Weighing before driving to the port
Our Company

Shandong Tada Auto Parking Co., Ltd

Tada was established in 2001, and is a professional parking solution company that includes design, manufacture, installation, after-sales service of automatic parking system for a series, with the resource advantage of H steel from Laigang Corporation, the advanced production technology of auto-parking systems and rich management experience from the USA and European countries.

Europe R&D Center

The Europe R&D Center of Tada was set up in 2004, located beside of beautiful Lake Lugano in Switzerland, which is the first independent R&D Center of the parking equipment manufacturing companies of China.
Many top parking experts of the world has joined in the research and development team, and now we possess the top technology of automatic parking system in the world (include the undisputed intellectual property), especially the unique technology in robot parking system, which let us rank at a leading level of this industry.
