PSH four floors puzzle automated parking garage lift

FOB Reference Price:Get Latest Price
US $3,000-4,000 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Puzzle parking system
Height (mm):
Vehicle Length 5000
Width (mm):
Vehicle Width 1850
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tada
Model Number:
PSH
Warranty:
1 Years
Drive mode:
Motor
Color:
Customerized
Capacity:
2000kg
Sliding speed:
8 m/min
Certification:
TUV, ISO
Power supply:
Upon request
Mode of operation:
Card, Button
Parking vehicles:
SUV or sedan
Surface treatment:
Paint(Optional to Galvanized)
Product Name:
PSH four floors puzzle automated parking garage lift
Supply Ability
Supply Ability:
10000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard export packing for parking system
Port
Qingdao port
Lead Time :
30-120 days after receiving the deposit
Product Description
PSH four floors puzzle automated parking garage lift
Type
Puzzle parking system
Brand Name
Tada
Available car size
5000x1850x1550(mm)
Load capacity
2000kg
Lifting power
2.2kw
Lifting speed
4 m/min
Sliding power
0.2kw
Sliding speed
8 m/min
Color
Customized
Certification
TUV, ISO
Driven mode
Motor
Operation mode
Card, Button

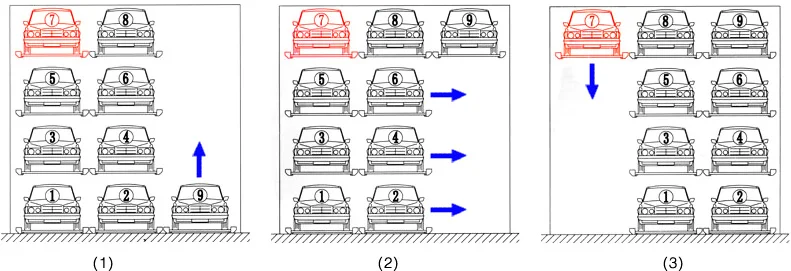

Operating Principle

The entrance of this type is on the ground floor, the car boards on the top layer can only be lifted, the car boards on the bottom layer can only be slid, and car boards on the middle layers can be both lifted and sild. The middle layers had empty spaces, so that the car boards could be slid, and let the vehicle above down to the ground floor to be picked. The vehicles on the bottom layer can be driven out directly.

Application Range

(1)The equipment utilizes steel wire to lift, it is designed into 4 layers.
(2)It has better utilization ratio of the space than the other common parking systems and more suitable for outdoors.
(3) Big span design and PLC controlling are good for environmental protection and energy-saving.

Equipment Structure
Each group of controlling of this parking system is designed into 3-car to 6-car, just depending on specific site conditions.

Type & Classification

4-point safety device on the ground and underground; independent car-resistant device, over-length, over-range and over-time detection, crossing section protection, with extra wire detection device.

Detailed Images

Electric control cabinet

Internal design of scientific compact, the use of domestic first-class brand components, More secure, more reliable.

Safety anti falling device

Parking equipment design safety fall arrest safety hook, when the equipment in use, the safety hook will automatically move, and lock the car board to prevent the decline.

Emergency stop switch

A large red seizure switch is provided on the control panel of the unit to ensure that any mechanical action can be stopped immediately upon the occurrence of an emergency and in the event of an emergency, and that the equipment can not be operated until the condition is removed.

Safety anti falling device

Parking equipment design safety fall arrest safety hook, when the equipment in use, or the upper platform plate in place, the safety hook will automatically move, and lock the car board to prevent the decline.
